High TNi 110℃ 4K 3840×2160 86" Digital Signage Displays sunlight readable
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD86CM-HD01 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screen Diagonal | 86”IPS, M+ (WRGB), High TNi 110℃ | Resolution | 4K 3840×2160 |
|---|---|---|---|
| Brightness (cd/m2) | 1500 Cd/m2~5000 Cd/m2 | Processor | Quad Core Cortex-A17 1.8Ghz; Octa-Core Optional |
| Chipset | RK3288; RK3399 Optional | Operating Temperature Range | 0~50°C |
| View Angels | 178/178 | Input | VGA HDMI RJ45 USB |
| Display Active Screen Size | 1895.04 (H)×1065.96(V) Mm | ||
| Highlight | 3840×2160 Digital Signage Displays,86" High Brightness Lcd Monitor |
||
Product Description
High TNi 110℃ panel 86" High Brightness Ultra Slim Window Facing Digital Signage LCD Display for storefront supermakert
BENEFITES
- Super High Brightness 1500~5000 cd/㎡ optional with Long Lasting Brightness
- Combined TNi 110℃ Industrial LCD Panel Avoiding Blackening Issue with Direct Sunlight
- Auto-Dimming Control to Save Power Energy
- Quiet Operation & Super Slim Design
- Visible with Polarized Sunglasses
- Ultra-Low Power Consumption & Longer Lifespan
- All steel construction designed for harsh and industrial environments
- 24/7/365 Running Supported
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD HD Series displays not only deliver an image with flawless clarity, but also are designed to maintain its superior picture quality even when exposed to direct sunlight – a common challenge for conventional in-window displays. In addition, with a slim and sleek design, the ITD HD series is compatible with any window layout and highlights the sophisticated and modern style of the brand. The ITD HD series also delivers bright and clear images while consuming a low amount of power, which positions businesses to reduce overall costs and optimize efficiency considerably. ITD’s HD series of window facing digital signage capture customers with its vivid image quality and quiet operation. The HD series helps businesses enhance their brand image while enriching the customers’ shopping experience.
Chassis High Brightness LCD Monitor |
|
| Model Name | ITD86CM-HD01 |
| IP Rating | IP65 Front Optional |
LCD Panel |
|
| Screen Diagonal (Inch/cm) | 86”IPS, M+ (WRGB), High TNi 110℃ |
| Display Active Screen Size (mm) | 1895.04 (H)×1065.96(V) |
| Aspect Ratio | 16:9 |
| Physical Resolution | 3840×2160 |
| Maximum Resolution Supported | 3840×2160 |
| Colors | 1.07B |
| Brightness (cd/m2) | 1500 cd/m2 up to Max. 5000 cd/m2 |
| Contrast Ratio | 1100:1 |
| Dynamic CR | 500,000:1 |
| View Angels | 89/89/89/89 |
| Surface Treatment | AGLR (Haze 3%) |
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime |
| Orientation | Landscape & Portrait |
Mechanical Structure |
|
| Bezel Color | Black |
| Bezel Width | 15mm(T/B/L/R) |
| Outline Dimensions (W×H×D) mm | 1934.00 × 1106.00 ×85.30 |
| Weight | 85.0KG |
| VESA Standard Mount | 500 × 600mm |
Solution 1: LCD Monitor Input / Output |
|
| Video Input | 1 × VGA |
| 1 × DVI-I (Optional) | |
| 1 × HDMI | |
| Audio | 1 × PC-Audio |
| RS232 Remote Control | Optional |
Solution 2: ARM Based Android Version Input / Output |
|
| Processor | Quad Core Cortex-A17 1.8Ghz; Octa-Core optional |
| Chipset | RK3288; RK3399 optional |
| Memory | Default 2GB |
| Flash | Default 8GB |
| Video Output | 1 × HDMI |
| USB Port | 2 × USB 2.0 |
| SD Card Slot | 1 × SD Card Slot |
| LAN | 1 × RJ45 Port |
| Audio Output | 1 × Audio Output |
| COM | Optional |
Operation |
|
| Operating Temperature Range | 0~50°C |
| Operating Humidity Range (RH) | 20-80% |
| 24/7/365 Use | Supported |
Power |
|
| Power Indicator | Green LED |
| Power Input | AC 100-240V (50/60 Hz) |
| Power Consumption | Type/Max.: 1150W/1300W Smart Energy Saving: 70W |
Accessories |
|
| Included Accessories | Remote Control (W/O Battery), AC Power Cable |
| Optional Accessorries | Mounting Brackets: Wall Mount, Roof Hanging, Floor Stand) |
Order Information |
|
| 86”1500nits Window Facing Digital LCD Monitor Display | ITD86CM-HD01 |
| 86”2000nits Window Facing Digital LCD Monitor Display | ITD86CM-HD02 |
| 86”2500nits Window Facing Digital LCD Monitor Display | ITD86CM-HD03 |
| 86”3000nits Window Facing Digital LCD Monitor Display | ITD86CM-HD04 |
| 86”4000nits Window Facing Digital LCD Monitor Display | ITD86CM-HD05 |
| 86”5000nits Window Facing Digital LCD Monitor Display | ITD86CM-HD06 |
| 86”1500nits Window Facing Digital Android LCD Display | ITD86CM-HDE1 |
| 86”2000nits Window Facing Digital Android LCD Display | ITD86CM-HDE2 |
| 86”2500nits Window Facing Digital Android LCD Display | ITD86CM-HDE3 |
| 86”3000nits Window Facing Digital Android LCD Display | ITD86CM-HDE4 |
| 86”4000nits Window Facing Digital Android LCD Display | ITD86CM-HDE5 |
| 86”5000nits Window Facing Digital Android LCD Display | ITD86CM-HDE6 |

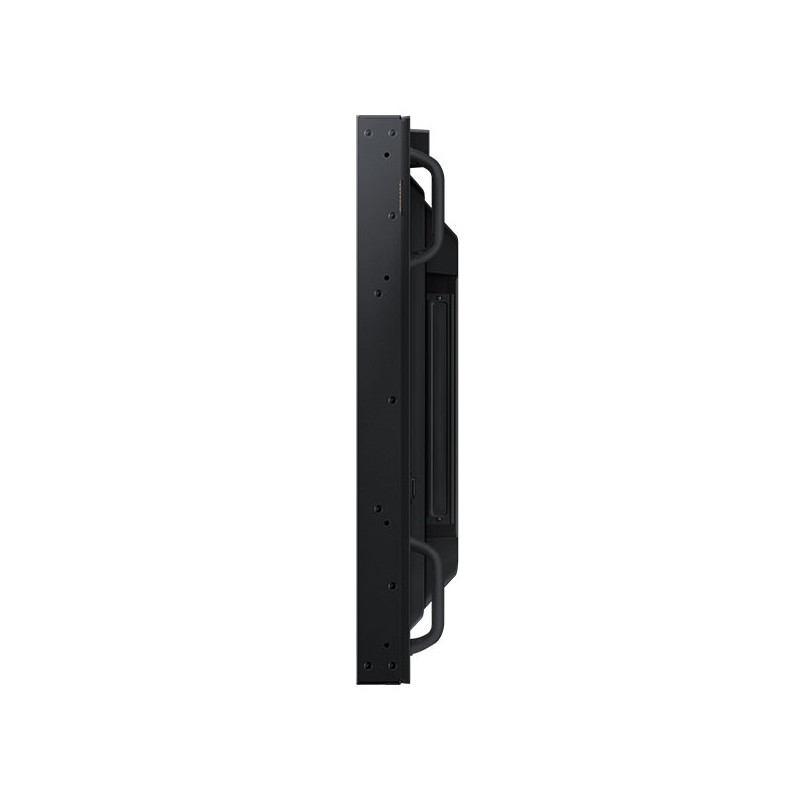

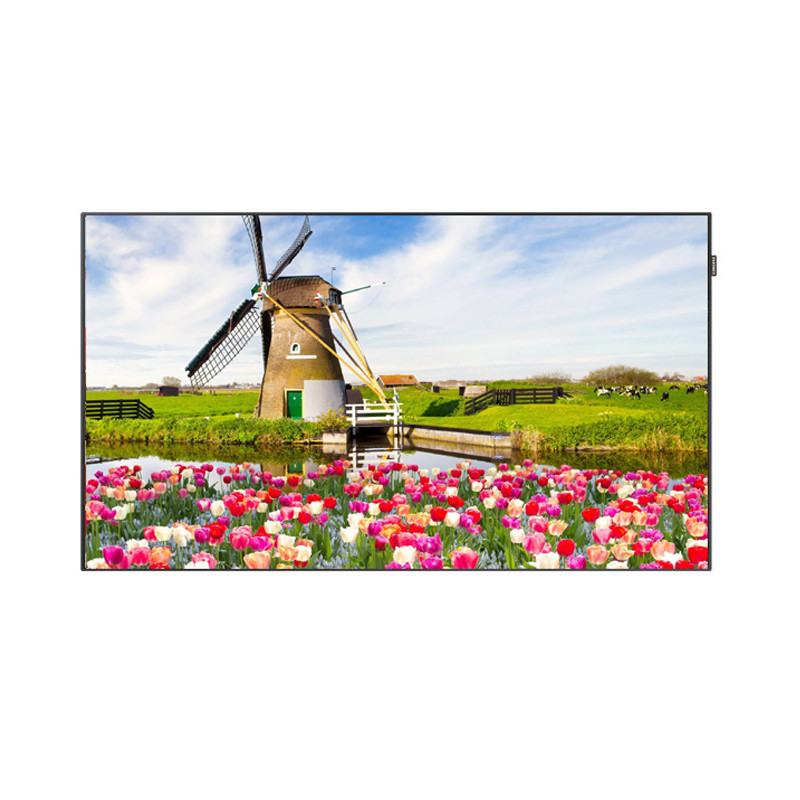

Product Image of 4K digital signage
