Dual Sided Ultra Thin 3000 Nits Digital Signage Displays
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS |
| Model Number | ITD43CM-D01/ITD49CM-D01/ITD55CM-D01 |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Packaging Details | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Delivery Time | 7-10 Business Days |
| Payment Terms | T/T, Western Union, Paypal |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screen Diagonal | 43”,49",55",IPS, M+ (WRGB), High TNi 110℃ | Resolution | 1920x1080 |
|---|---|---|---|
| Brightness (cd/m2) | 700 Cd/m2/1500 Cd/m2~5000 Cd/m2 | Operating Temperature Range | 0~45°C |
| View Angels | 178/178 | Input | VGA HDMI RJ45 USB |
| Power Supply | 100-240V 50/60HZ | Operating System | Android 7.1 |
| Haze | 2% | Brightness | 700/3000nits |
| Bezel Color | Black | Bezel Width | 25.0mm(L/R) |
| Highlight | 3000 Nits Digital Signage Screens,Dual Sided Digital Signage Kiosk |
||
Product Description

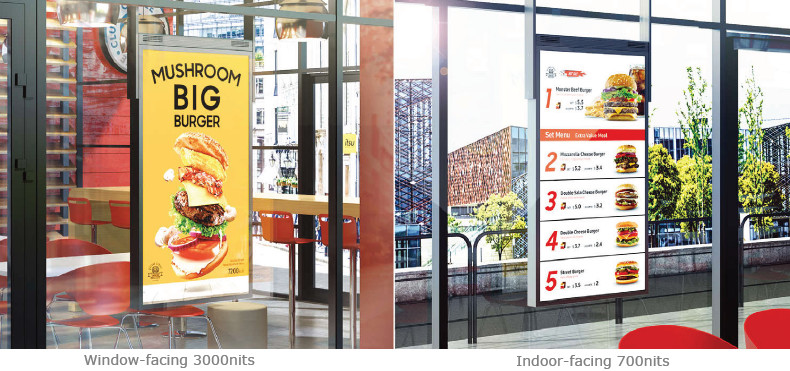

Dual Sided Ultra thin window fasing advertising Digital Signage Displays
ITD ultra high brightness LCD displays are the proven solution for high ambient light applications. With brightness ratings
as high as 5,000 nits, ITD high brightness LCDs shine bright in direct sunlight—making them the ideal solution for outdoor enclosures
and window-facing applications.
Specs:
Chassis High Brightness LCD Monitor |
|
| Model Name | ITD55CM-D01 |
| IP Rating | IP65 Front Optional |
LCD Panel |
|
| Screen Diagonal (Inch/cm) | 55”IPS, M+ (WRGB), High TNi 110℃ |
| Display Active Screen Size (mm) | 1209.6(H)×680.4 (V) |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920×1080 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 16.7M |
| Brightness (cd/m2) | 700 cd/m2/1500 cd/m2~5000 cd/m2 |
| Contrast Ratio | 1200:1 |
| Dynamic Contrast | 500,000:1 |
| View Angels | 89/89/89/89 |
| Surface Treatment | AGLR (Haze 2%) |
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime |
| Orientation | Landscape & Portrait |
Mechanical Structure |
|
| Bezel Color | Black |
| Bezel Width | 25mm(T/B/L/R) |
| Outline Dimensions (W×H×D) | 1302.70 × 732.40 × 80.00 mm |
| Weight | 42KG |
| RS232 Remote Control | Optional |
ARM Based Android |
|
| Processor | Quad Core Cortex-A17 1.8Ghz; Octa-Core optional |
| Chipset | RK3288; RK3399 optional |
| Memory | Default 2GB |
| Flash | Default 8GB |
| Video Output | 1 × HDMI |
| USB Port | 2 × USB 2.0 |
| SD Card Slot | 1 × SD Card Slot |
| LAN | 1 × RJ45 Port |
| Audio Output | 1 × Audio Output |
| COM | Optional |
Operation |
|
| Operating Temperature Range | 0~50°C |
| Operating Humidity Range (RH) | 20-80% |
| 24/7/365 Use | Supported |
Power |
|
| Power Indicator | Green LED |
| Power Input | AC 100-240V (50/60 Hz) |
| Power Consumption | 440W |
Accessories |
|
| Included Accessories | Remote Control (W/O Battery), AC Power Cable |
| Optional Accessorries | Roof Hanging |
Order Information |
|
| 55”700nits&3000nits Window Facing Digital Android LCD Display | ITD55CM-D01 |
| 55”700nits&4000nits Window Facing Digital Android LCD Display | ITD55CM-D02 |
| 55”700nits&5000nits Window Facing Digital Android LCD Display | ITD55CM-D03 |

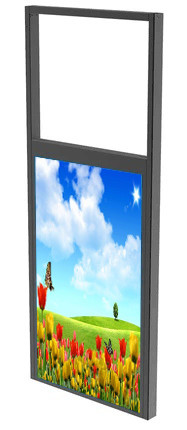

Product Image
