NFC Reader Rugged Tablet Computer Windows Linux GPS BT 4G Battery 1280x800

  • NFC Reader Rugged Tablet Computer Windows Linux GPS BT 4G Battery 1280x800
  • NFC Reader Rugged Tablet Computer Windows Linux GPS BT 4G Battery 1280x800
  • NFC Reader Rugged Tablet Computer Windows Linux GPS BT 4G Battery 1280x800
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD101PPCT5RZ2
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 15-20 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Native Resolution 1280x800 Brightness 450nits
Processor Intel Cherry-Trail Z8350 Quad Core Touch Panel PCAP Touch
Pepherials Integrated NFC Reader, Barcode Scanner I/O SIM Card Slot X1(If 4G Module Added) Micro USB X1; USB2.0 Host X1 Micro HDMI-I Output X1 ∮3.5mm Standard Earphone Jack X1 DC Input X1 Power Key X1 Volume + - X2 Optional
Operating Temperature -20~60℃ Storage Temperature -20~70℃
Material Rugged Aluminum Casing MTBF 50000hours
Highlight

NFC Reader Rugged Tablet Computer

,

1280x800 Rugged Tablet Computer

,

GPS BT Rugged Industrial Pc
Leave a Message
Product Description

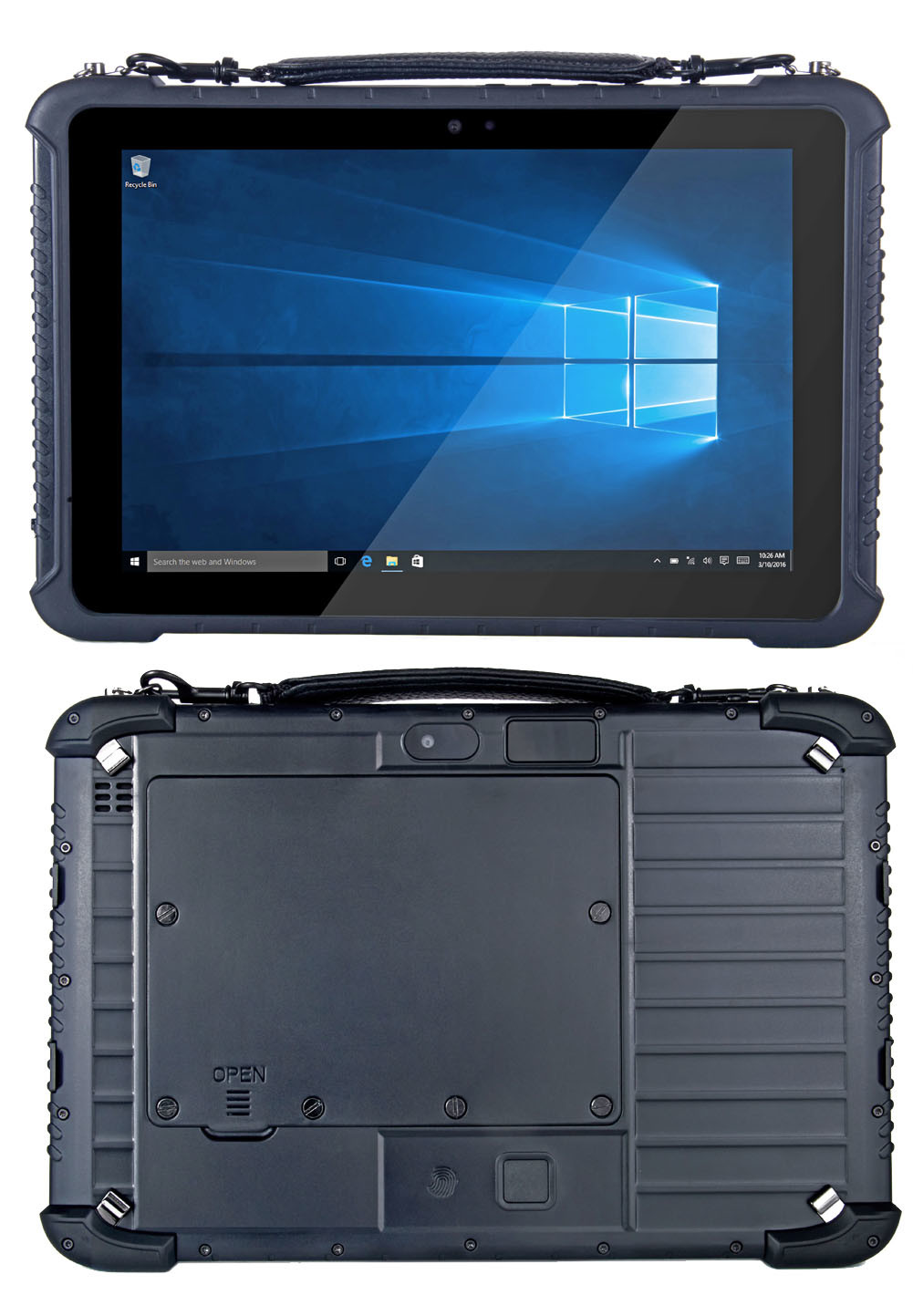

10.1inch rugged tablet computer Windows linux GPS BT 4G battery with 7h



Product Picture NFC Reader Rugged Tablet Computer Windows Linux GPS BT 4G Battery 1280x800 0NFC Reader Rugged Tablet Computer Windows Linux GPS BT 4G Battery 1280x800 1
Product Outlook
Type Details Standard Configuration
Product Form Type Rugged Tablet
Dimension 230.9 x 155.6 x 21mm
Net Weight 790g
Device Color Black
LCD Screen Size 10.1inch 16:10
Resolution 1280 x 800 IPS
Brightness 450 Nits
TP Touch Panel 5points Capacitive,G+G,Hardness: 7H-Anti-Scratch, Support Handwriting
Camera Front Front: 2MP
Rear Rear: 5MP
Speaker Built-in Embedded 8Ω/0.8W BOX Waterproof Speaker x 1
Mic Built-in Sensitivity:-42db, Output Resistance2.2kΩ
Battery Type Build in Lithium-ion Polymer Battery
Capacity 3.7V/7800mAh
Endurance 7hrs(default 50% volume,default 50% brightness, play 1080P FHD video)
System Hardware Configuration
Type Details Description
CPU Type Intel Cherry-Trail Z8350 Quad Core
Speed 1.44-1.92 GHz
RAM DDR3L 4GB
ROM EMMC 64G
Network Connections
Type Details Descriptions
WIFI WIFI Module WIFI 802.11(a/b/g/n) Frequency 2.4G+5G Dual Band
Bluetooth Built-in BT4.0
4G Built-in 4G Frequency:FDD LTE Bands:B1/B2/B3/B4/B5/B7/B8/B20
GPS Built-in U-blox NEO-7
Interface Configuration
Type Details Descriptions
TF Slot Extensive External Memory Support SDHC/SDXC x1
SIM Slot SIM Card SIM Card Slot x1
USB Interface Data Transmission & Power Charging Micro USB x1; USB2.0 Host x1
Video Output HDMI-I Micro HDMI-I Output x1
Earphone Jack Audio Output ∮3.5mm standard earphone jack x1
DC Input DC Input DC Input x1
Power On Press Key power key x1
Volume + - Press Key Volume + - x2 optional
Standard Accessories
Type Details Description
USB Cable USB Cable USB to Micro USB 5P L=1.2M, USB OTG Cabale
Power Charger Charger Power Charging
Software Configuration
Type Details Description
Operation System OS Version

Windows 10 Home, Windows

10 pro (optional)



Ruggedness Level
Type Details Description
Compliance IP67 Method Name:short time submerging test
Test Device and Test Condition:submerge water box.the size should make the testing sample into submerge box and after then, the distance from sample bottom to water surface at least 1m. and distance from sample top side to water surface at least 0.15m.
Testing Time: 30 min
Battery UN38.3,MSDS,IEC62133
Reliability
Type Details Descriptions
Product Reliability Drop Height 1.0m composite wood floors, in operation status
Operate Temperature -20 °C to 60 °C
Store Temperature -30 °C to 70 °C
Humidity Humidity: 5%-95% Non-Condensing
Options
Type Details Descriptions
NFC NFC Support ISO/IEC 14443A/14443B/15693/18092/Mifare, Readable Distance: about 4cm
Moto Barcode Scanner Barcode Scanner 2D/1D Barcode Scanner
Basic Docking Station Basic Docking Station 1 x RJ45+3 x USB2.0
AR Film AR Film For Better Readability in Sunlight

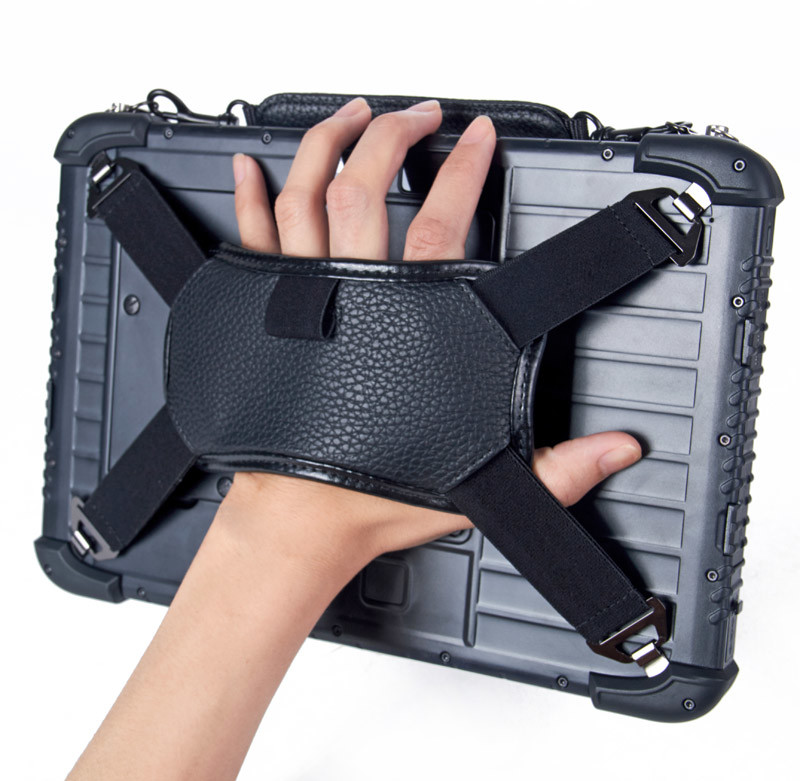

Hand Bandage, Vehicle Mount, Leather Shell, Base
