IP67 Rugged Tablet PC 10.1" Capacitive Touch Screen MIL-STD-810G With 1D 2D Scanner

  • IP67 Rugged Tablet PC 10.1" Capacitive Touch Screen MIL-STD-810G With 1D 2D Scanner
  • IP67 Rugged Tablet PC 10.1" Capacitive Touch Screen MIL-STD-810G With 1D 2D Scanner
  • IP67 Rugged Tablet PC 10.1" Capacitive Touch Screen MIL-STD-810G With 1D 2D Scanner
  • IP67 Rugged Tablet PC 10.1" Capacitive Touch Screen MIL-STD-810G With 1D 2D Scanner
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD101PPCT5-I11H
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm, suitable for international shipping
Delivery Time 10-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Native Resolution 10.1 Inch IPS 16:10, 800x1280, 450nits Processor Intel Atom X5 Z8350
Touch Panel Multiple Point G+G Capacitive Touch Screen Pepherials Integrated NFC, 2D, 1D
I/O USB 2.0 Type-A X 1, Micro USB X 1, SIM Card X 1, TF Card X 1, HDMI 1.4a X 1, 12pins Pogo Pin X 1, Φ3.5mm Standard Earphone Jack X 1, Φ3.5mm DC Jack X 1 Operating Temperature -20~60℃
Compliance MIL-STD-810G , IP67 Rated Material Rugged Aluminum Casing
Warranty 2 Years Battery 3.7V/8000mAh, 8hrs Endurance
OS Support Windows 10
Highlight

IP67 Rugged Tablet PC

,

Rugged Tablet PC 10.1"

,

capacitive touch screen ruggedized tablet pc
Leave a Message
Product Description

ip67 rugged tablet pc 10.1" MIL-STD-810G with 1D 2D scanner



Features of ip67 rugged tablet pc



• Support for Windows 10 system
• Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes
• 8000mAh battery, 6-8 hours of machine endurance
• IP67 high protection level, in accordance with MIL-STD-810G
• Optional GPS, QZSS, GLONASS, more accurate positioning
• Support 5 million pixel auto focus camera, easy to collect images and video information
• Support 1D/2D, NFC and other functional modules for free selection



Application of IP67 rugged tablet PC

• Outdoor Exploration

• Military Equipment

• Logistics&Warehouse

• Animal Husbandry



Specification of Rugged Tablet PC

Dimension 275.7 x 187.5 x 24.5mm
Weight device unit 1000g
Device Color black
LCD 10.1 inch IPS 16:10, 800x1280, 400nits
Touch Panel Multiple point G+G capacitive touch screen
Camera Front 2.0MP Rear 5.0MP
I/O USB 2.0 Type-A x 1, Micro USB x 1,
SIM Card x 1, TF Card x 1,
HDMI 1.4a x 1,
12pins Pogo Pin x 1,
Φ3.5mm standard earphone jack x 1,
Φ3.5mm DC jack x 1
Extension
interface
(4 choose 1)

RJ45 (10/100M) x 1,
DB9 (RS232) x 1,
USB 2.0 Type-A x 1

2D Scanner x 1
Power AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A
CPU Intel Atom x5 Z8350
OS Windows 10
RAM 4GB,Optional 8GB
Storage 64GB,Optional 128GB
Battery Capacity 3.7V/8000mAh
Battery Type Removable Li-polymer battery
Battery Endurance 8hrs ( 50% volume sounds, 200 lumens brightness,
1080P HD video display by default )
WIFI 802.11 a/b/g/n/ac (2.4G/5.8G)
Bluetooth BT4.2
4G
(Optional)		 LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
GNSS Built-in, GPS, Glonass, Beidou, and Single Beidou
Operate
Temperature		 -20 °C ~ 60 °C
Store
Temperature		 -30 °C ~ 70 °C
Humidity 95% Non-Condensing
Rugged
Feature		 IP67 certified, MIL-STD-810G certified
Drop Height 1.22m drop
1D Optional, MOTO SE655E100R
NFC Optional, support ISO/IEC 14443A/B, ISO/IEC 15693,
ISO/IEC 18092, ISO/IEC mifare protocol
2D Optional, EM80

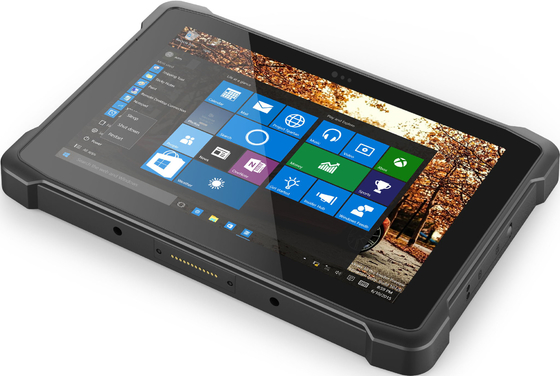

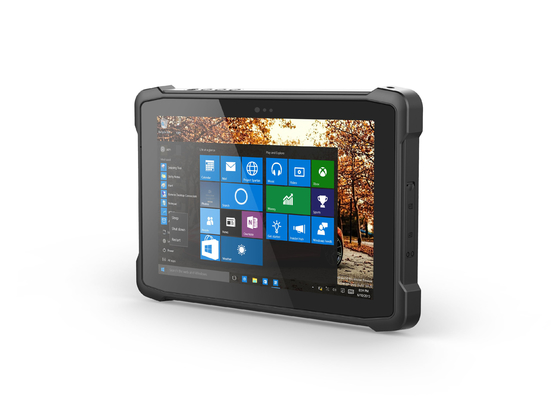

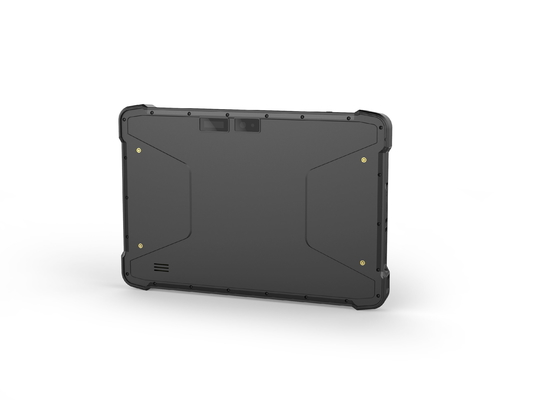

Display of the Rugged Tablet Windows PC


IP67 Rugged Tablet PC 10.1" Capacitive Touch Screen MIL-STD-810G With 1D 2D Scanner 0



IP67 Rugged Tablet PC 10.1" Capacitive Touch Screen MIL-STD-810G With 1D 2D Scanner 1
