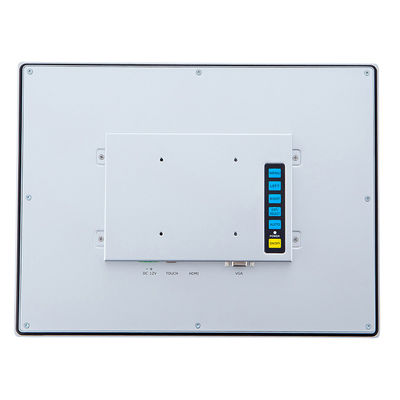

FCC Industrial LCD Touch Screen Monitor IP65 Front Flat Panel For Automation Control
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Steel Chassis And Aluminum Front Bezel | Color | Black Or Silver |
|---|---|---|---|
| Mounting Type | Panel Mount, VESA Mounting | MTBF | 50000Hours |
| Operating Temperature | -10~60℃(-20~70℃ Optional) | Operating Humidity | 10%-90% (Non Condensing) |
| 24/7/365 Use | Supported | Resolution | 1024*768 |
| Aspect Ratio | 4:3 | Brightness | 350nits |
| Highlight | FCC industrial lcd touch screen monitor,IP65 industrial lcd touch screen monitor,VESA Mounting ip65 touch screen monitor |
||
Product Description
industrial lcd touch screen monitor IP65 front flat panel for automation control
| Article | industrial lcd touch screen monitor IP65 front |
| IP | IP65(for front panel only) |
| Cut-Out Dimensions | 362.6×283mm |
| Aluminum Front Bezel Thickness | 3mm (6mm, 10mm optional) |
| Weight(N.W/G.W) | 4Kg / 5Kg (Approx.) |
| LCD Type | 15＂Active matrix TFT-LCD |
| Video Input | VGA and DVI-I, HDMI, Audio |
| Recommend Resolution | 1024×768@60Hz,75Hz |
| OSD controls | Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Input | DC 12V Power Plug; DC 9-36V input optional |
| Power Consumption | 15W |
| Mount Interface |
1)VESA 75×75/100×100mm 2)Panel Mounting via Clamps |
| Regular Warranty | 1 Year for TFT panels; 2 Years for others. |
| Agency Approval | FCC, CE, RoHS Certified |
2. 2 LCD Specification
| Active Area(mm) | 304.128(H)×228.096(V) |
| Resolution | 1524×768 |
| Pixel Pitch(mm) | 0.297×0.297 |
| Nominal Input Voltage VDD | +3.3V(Typ.) |
| Viewing angle (L/R/T/B) | 80°/80°/60°/80° |
| Contrast | 700:1 |
| Luminance(cd/m2) | 250 |
| Response Time(Rising/Falling) | 5.7ms/2.3ms |
| Support Color | 16.2M |
| Screen Scanning | 60Hz |
| Backlight MTBF(hr) | 50000h |
2.3 Touch Screen Specification
2.3.1 Projected Capacitive Touch Screen
| Type | Projected Capacitive Touch Screen |
| Surface Hardness | 7H |
| Light Transmission | 85%±5% |
| Touch Life Cycle | 50 million times |
| Touch Response time | 5ms |
| Touch System Interface | USB A type (USB B type optional) |
| Operating System Support |
Plug and Play for Windows 7/8/10,Linux Kernel 3.18.12 or above Drivers for Windows CE/XP, Mac, Android |
2.3.1 5 Wires Resistive Touch Screen
| Type | 5 Wires Resistive Touch Screen |
| Surface Hardness | 3H |
| Surface Treatment | Anti-Glare |
| Light Transmission | ≥78% |
| Finger Touch Life | 35 million times |
| Touch Response time | ≤15ms |
| Touch System Interface | USB B type (A type optional) |
| Operating System Support | Drivers for Windows CE/XP/7/8/10,Linux, Mac, Android |
2.4 External AC Power Adapter
| Output | 12V DC/4A |
| Input | 150-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
2.5 Environment
| Operating Temp. | -10～60°C (-20～70°C optional) |
| Storage Temp. | -20～70°C |
| Operating RH: | 20%～80% |
| Storage RH: | 15%～90% |
