Rugged Lcd Displays Monitor 7 Inch Waterproof With Speakers For Robots

  • Rugged Lcd Displays Monitor 7 Inch Waterproof With Speakers For Robots
  • Rugged Lcd Displays Monitor 7 Inch Waterproof With Speakers For Robots
  • Rugged Lcd Displays Monitor 7 Inch Waterproof With Speakers For Robots
  • Rugged Lcd Displays Monitor 7 Inch Waterproof With Speakers For Robots
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS
Model Number ITD07CMT5HBIPA2
Minimum Order Quantity 1PCS
Price TBA
Packaging Details 1-5pcs/CTN, Safe, Firm
Delivery Time 5-15 Business Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Aluminum Alloy Chassis With VESA Mounting And Embedded Mounting Brightness 1000cd/㎡
I/O HDMI Input, USB Port, DC Input, Speakers MTBF 50000Hours
Operating Temperature -20~70℃ Touch Screen Capacitive Multi Touch Screen
24/7/365 Use Supported Application Robots, Outdoor Displays
Warranty 2 Years Keywords Rugged Lcd Displays
Highlight

1000cd/2 Rugged Touch Screen Monitor

,

Ruggedized Lcd Display With Speakers

,

Rugged Lcd Displays For Robots
Leave a Message
Product Description

rugged lcd displays 7 inch waterproof monitor with speakers for robots



ITD 7”rugged lcd displays full IP65/IP66 high bright LCD display series features industrial-duty fully sealed NEMA 4/IP65 stainless steel/aluminum chassis, for specially use in hygienic and harsh environments. It offers extra protection from extensive corrosive environments with the intrusion of dust, rain, hose directed water, and applications where corrosive materials and caustic cleaners are used. The additional high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality and guaranteeing product life cycle longevity, stability, and reliability.



FEATURES of rugged lcd displays

▪Rugged stainless-steel/aluminum alloy enclosure

▪IP65/IP66 sealed, with anti-corrosive rubber providing 360-degree protection

▪Full IP65/IP66 I/O connectors protect from any particles, water, and corrosive agents

▪Modularize mechanical design provides flexible product configuration and easy maintenance

▪CE, FCC, RoHS Compliance



OPTIONALS of rugged lcd displays

•PCAP touch, resistive touch, AR/AG protective glass •Optical bonding

•DC 9-36V Input

•Stainless steel housing

•Full IP67



SPECIFICATION of rugged lcd displays

Panel Cell Type/Glass Surface TFT
Aspect Ratio/Size 7” 16: 9
Active Area/Pixel Pitch 154.214(H) x 85.92(V)/0.1506 x 0.1432mm
Native Resolution/Colors 1024 x 600 /262K/16.7M
Brightness/Contrast 1000nits/800:1
Response Time 10/15ms
Viewing Angle (Typical) 75/75/70/75
Light Source LED with 50000hours’lifetime
Input Signal HDMI (Waterproof Connector)
Power Input DC 12V input (Waterproof Connector)
Touch Panel PCAP Touch Panel Waterproof USB Connector
Power Consumption 10W
Operating Temperature -10~60℃ (-20~70℃ optional)
Storage Temperature -20~60℃
Order Information 7” 1000nits Full IP66 aluminum monitor with tempered glass/ITD07CMG1HBIPA2
7” 1000nits Full IP66 aluminum monitor with resistive touch/ITD07CMT1HBIPA2
7” 1000nits Full IP66 stainless monitor with resistive touch/ITD07CMT1HBIPS2
7” 1000nits Full IP66 stainless monitor with PCAP touch/ITD07CMT5HBIPS2

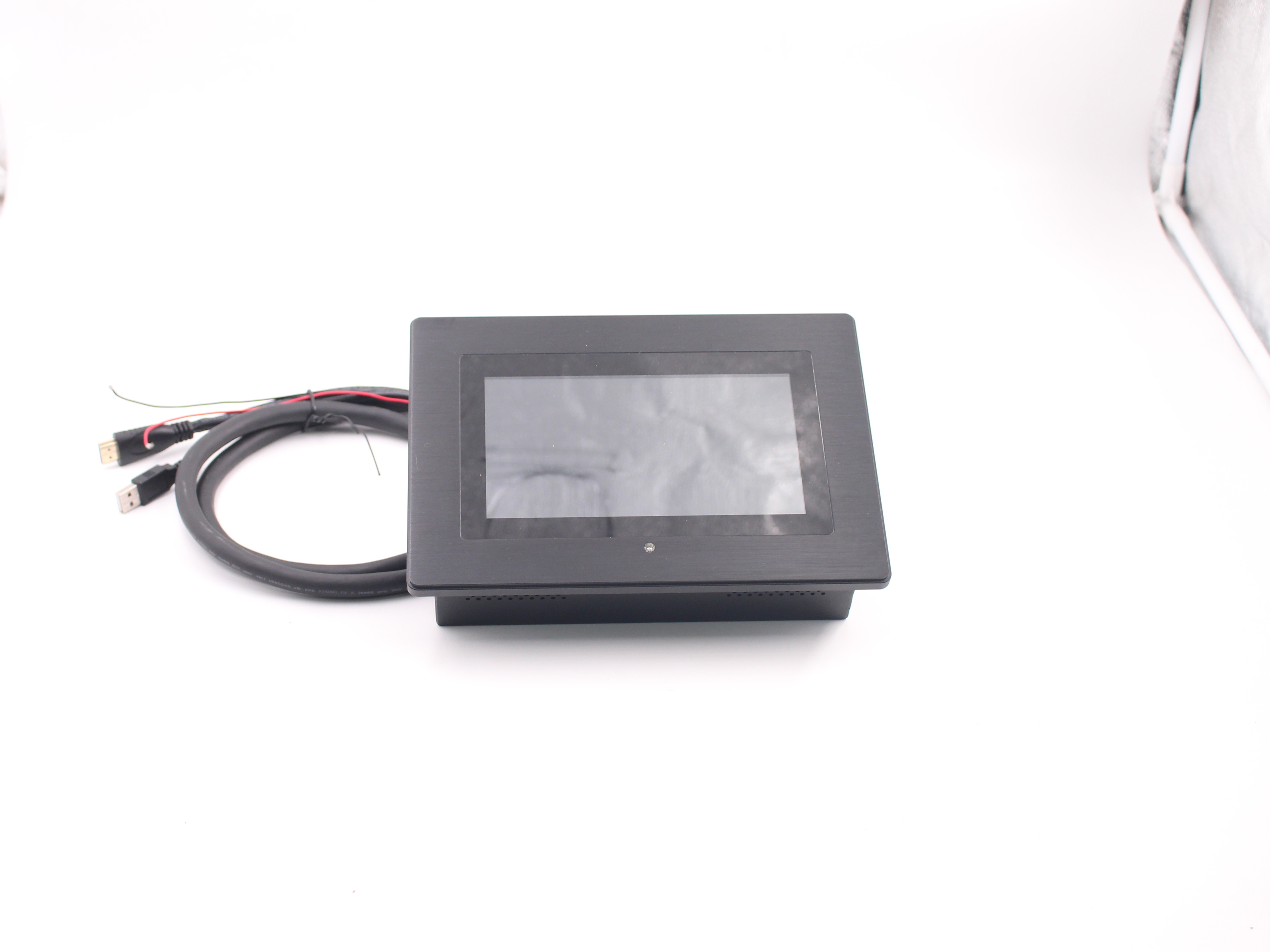

Pictures of rugged lcd displays

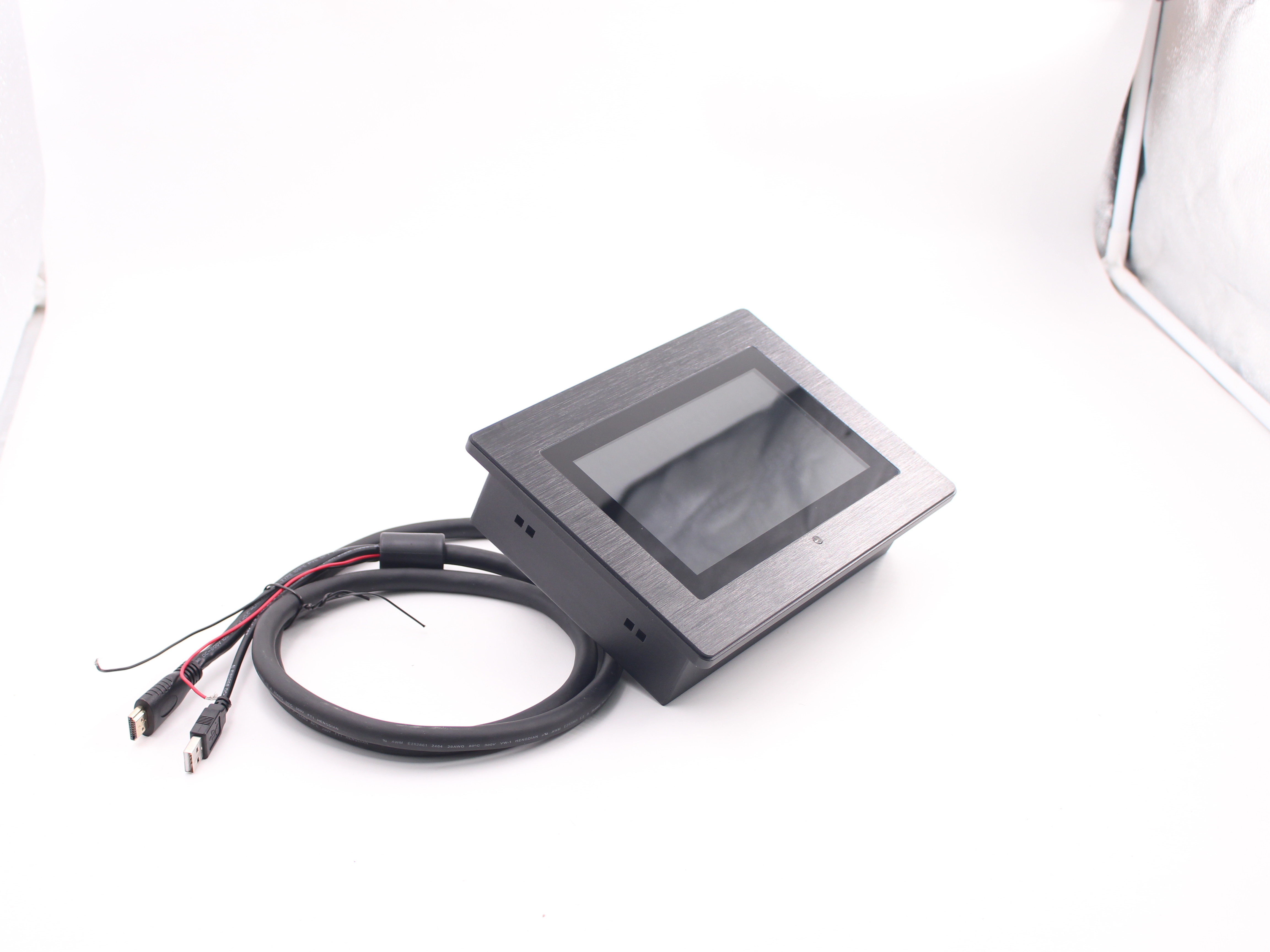

Rugged Lcd Displays Monitor 7 Inch Waterproof With Speakers For Robots 0

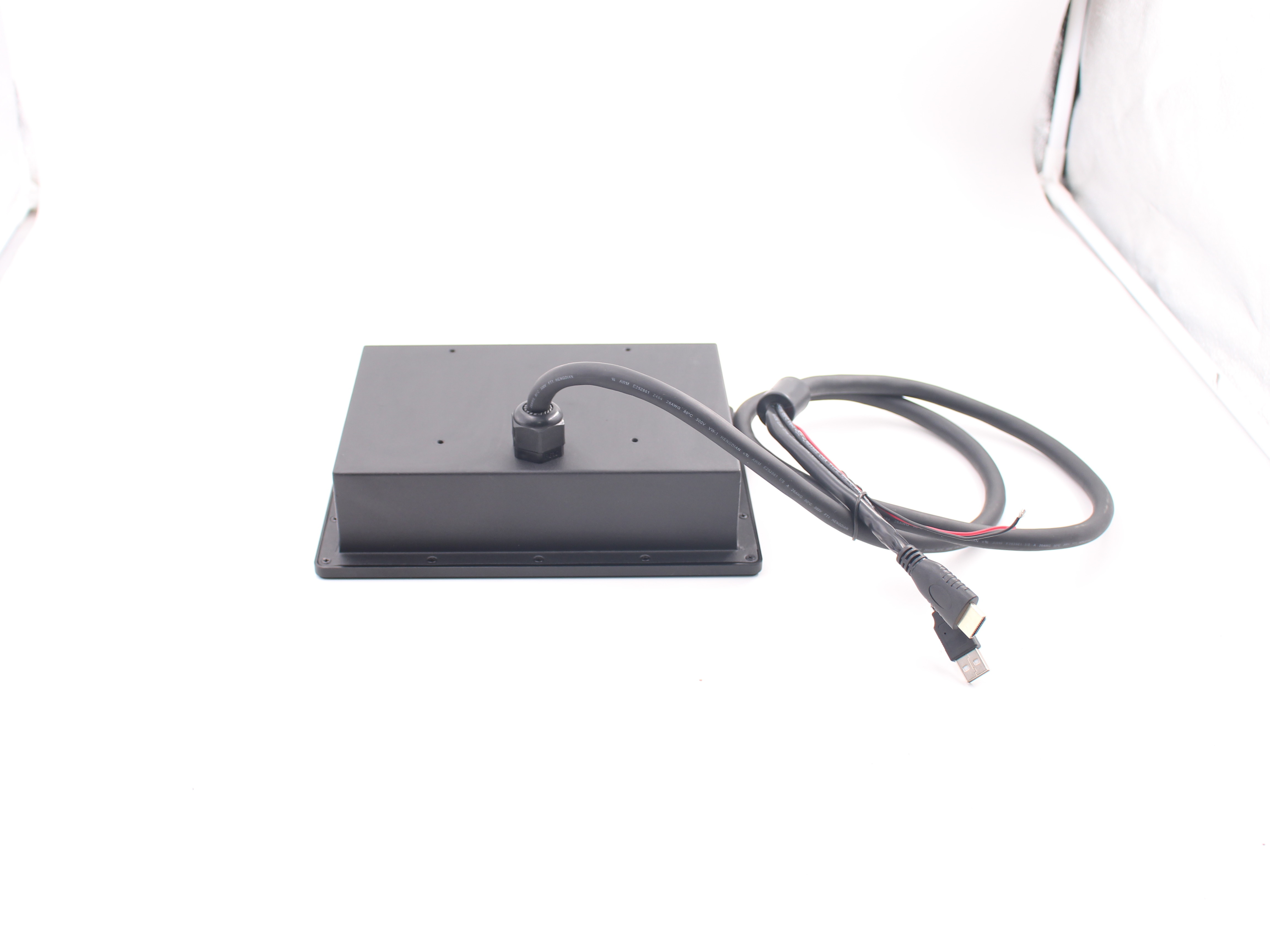

Rugged Lcd Displays Monitor 7 Inch Waterproof With Speakers For Robots 1
