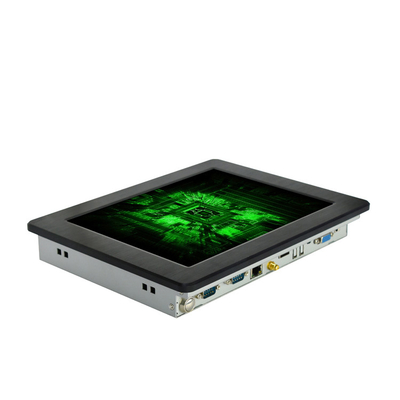

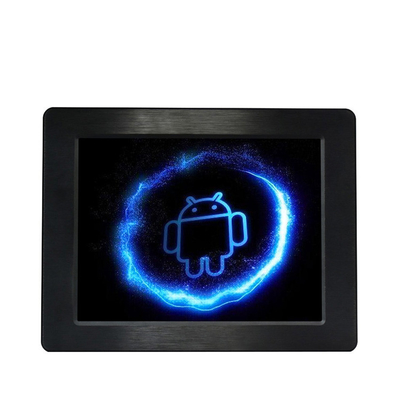

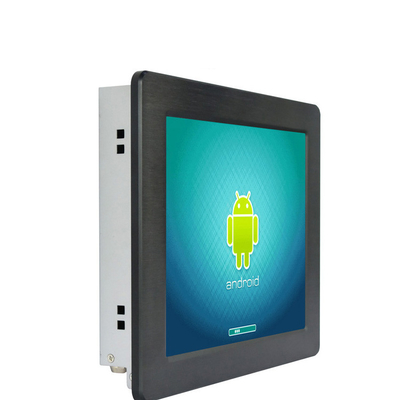

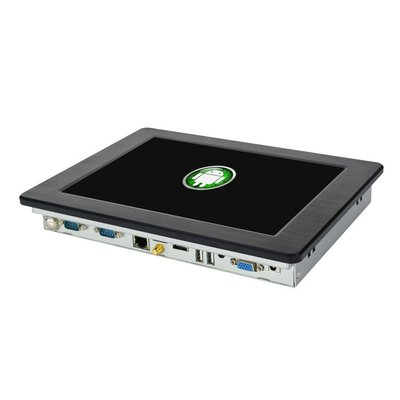

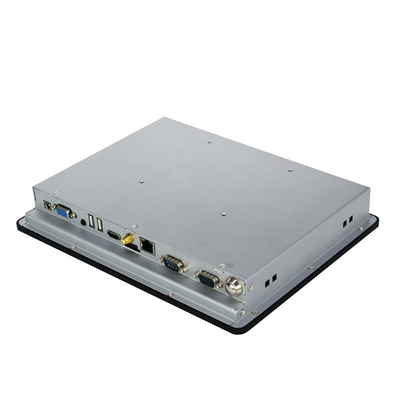

10.4'' Embedded LCD Rugged HD Panel Mount Monitor All In One Fanless PCs Resistive

  • 10.4'' Embedded LCD Rugged HD Panel Mount Monitor All In One Fanless PCs Resistive
  • 10.4'' Embedded LCD Rugged HD Panel Mount Monitor All In One Fanless PCs Resistive
  • 10.4'' Embedded LCD Rugged HD Panel Mount Monitor All In One Fanless PCs Resistive
  • 10.4'' Embedded LCD Rugged HD Panel Mount Monitor All In One Fanless PCs Resistive
  • 10.4'' Embedded LCD Rugged HD Panel Mount Monitor All In One Fanless PCs Resistive
  • 10.4'' Embedded LCD Rugged HD Panel Mount Monitor All In One Fanless PCs Resistive
Place of Origin China
Brand Name ITD/OEM
Certification CE,FCC, RoHS Compliance
Model Number ITD10PPCT1HBJ2
Minimum Order Quantity 1PCS, No MOQ
Price TBA
Delivery Time 10-15 Business days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Rugged HD Panel Mount Monitor

,

10.4in Embedded Panel Mount Monitor
Leave a Message
Product Description



10.4'' Embedded LCD Rugged HD Panel Mount Monitor All In One Fanless PCs Resistive 010.4'' Embedded LCD Rugged HD Panel Mount Monitor All In One Fanless PCs Resistive 110.4'' Embedded LCD Rugged HD Panel Mount Monitor All In One Fanless PCs Resistive 210.4'' Embedded LCD Rugged HD Panel Mount Monitor All In One Fanless PCs Resistive 3

IITD 10.4” ITD10PPCT1HBJ2 is panel mount high bright touch PCs provide OEMs with vast selection of technologies and solutions simplifying PLC, HMI and SCADA applications. These PCs feature Intel® Celeron™ Quad Core Processor J1900 2.0 GHz, in industrial-grade LCD flat panels with resistive touch technology and NEMA 4 IP65 front bezel optional designed for HMI display and visualization solutions. These HMI thin clients are designed for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.



FEATURES

▪ Flexible, reliable, and ruggedized for open platform HMI/SCADA

▪ Energy-efficient and fan-less HMI Systems

▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

▪ Flexible, easy configuration and integration

▪ CE, FCC, RoHS Compliance



OPTIONALS

•Anti-Glare / Anti-Reflective tempered glass

•SDD 64GB,128GB up to 521GB

•HDD 500GB up to 1TB

•Touch optional: Resistive, IR, PCAP

•Optical bonding

•DC24V, DC 9-36V



SPECIFICATION

System CPU Intel® Celeron J1900 2.0GHz Processor
Memory 2GB, 4GB optional
Chipset Inter Valley View SSA-Cunit
HDD 320GB SATA or 32GB SSD
LAN 1 x 10/100/1000Mbps Ethernet
Panel Cell Type/Glass Surface Color TFT LCD
Aspect Ratio/Size 10.4''/4:3
Active Area/Pixel Pitch 248mm(H) x 186mm(V)/0.3075mm
Native Resolution/Colors 800 x 600 /16.7M
Response TBrightness/Contrast 1000nits/500:1
Viewing Angle(Typical) 80/80/75/75
Synchronization Range Horizontal/Vertica 31.5~60.0KHz/60~75Hz
Light Source LED backlight with 50000hours’lifetime

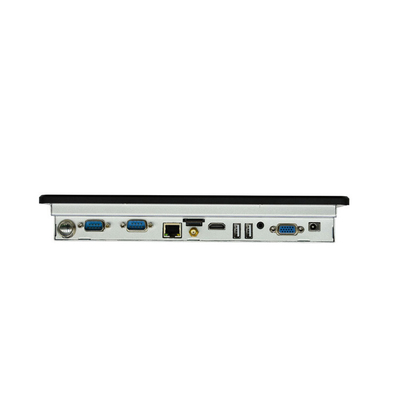

Input / Output Serial Ports 2 x COM
USB Ports 4 X USB
HDMI Port 1 X HDMI
VGA Port 1 x VGA
LPT Slot N/A
Audio MIC-IN, LINE-OUT
Power Input Voltage External power supply with universal / Auto-Sensing, DC 12V
Operation/Power Saving Below 30W
Operating Temperature -10℃~60℃  (20~70℃ Optional)
Storage Temperature -20℃~70℃
Relative Humidity 10%~90% (non condensing)
Convenient Features Backlight adjustment, Plug & Play
Power External AC-to-12VDC power adapter with universal/Auto-Sensing
Power Consumption Operation/Power Saving: Below 15W
OS Support Windows 7/ 8/10, Windows Embedded, Linux, Win CE
Touch Panel 5 Wires Resistive
Key Control Power on/off with LED, Menu, Select, Adjustment(Right/Left)
