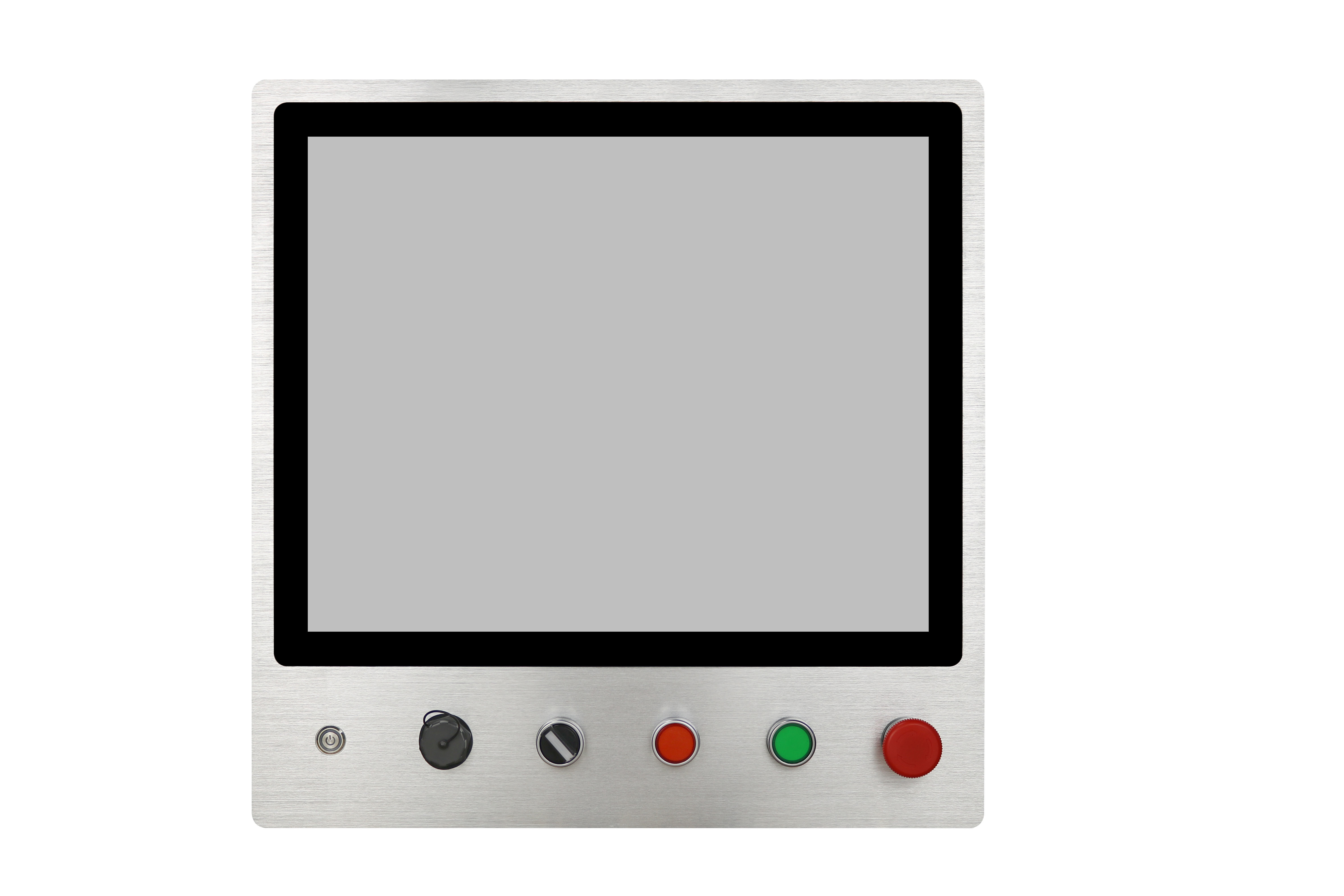

Industrial Grade 19.5'' Integrated Buttons Panel PC with PCAP Touch RK3288

  • Industrial Grade 19.5'' Integrated Buttons Panel PC with PCAP Touch RK3288
Place of Origin China
Brand Name ITD/OEM
Certification CE, FCC, RoHS Compliance
Model Number ITD19PPCT5OE1
Minimum Order Quantity 1PCS
Price TBA
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
I/O 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional); 1 × TF Card Support 8~128GB Contrast Ratio 1000:1
Operating Temperature (-20～70℃) Power Connector DC 12V Input
Humidity Range (RH) 10-90%
Highlight

PCAP Touch Panel PC

,

Industrial Grade Panel PC

,

19.5'' Integrated Buttons Panel PC
Leave a Message
Product Description

INTRODUCTION:



The ITD integrated buttons operation panel PC typically features a touchscreen display, allowing users to interact directly with the interface by tapping or swiping on the screen. In addition to the touchscreen functionality, the device incorporates physical buttons that are strategically placed on the panel for specific functions. These buttons may serve as shortcuts, control inputs, or dedicated keys for certain tasks, enhancing the overall user experience and efficiency. It is mainly used for industrial automation, manufacturing control systems, medical equipment interfaces, and more. The integration of physical buttons with a touchscreen interface aims to strike a balance between the convenience of touch interaction and the precision of dedicated buttons, catering to a wide range of user preferences and operational requirements.



FEATURES:

• Easy-to-clean, true flat front surface without bezel

• Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA

• Built-in function buttons for intuitive operation

• Eliminates dust and debris build-up at the edge and corners of the display

• Provides improved power efficiency and reduced consumption

• PCAP touch control with responding to a light touch to activate response

• Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel

• Aluminum front bezel and steel chassis construction designed for harsh and industrial environments

• CE, FCC, RoHS Compliance



OPTIONALS:

• DC 24V, DC9-36V, AC100-240V

• Optical bonding, High brightness

• Resistive touch screen, tempered glass, AR/AG

• WIFI, 4G/5G, GPS

Specification:



DISPLAY
Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 19.5”/4:3
Active Area/ Pixel Pitch 376.3(W) ×301.1(H)mm/0.294× 0.294mm
Native Resolution/ Colors 1280×1024/16.7M
Brightness/ Contrast 250cd/㎡/1000:1
Response Time/ Viewing Angle(Typical) 5ms/85/85/80/80
Light Source LED Backlight with 50000Hours’Lifetime



SYSTEM
Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399/RK3568/RK3588 optional) Intel® Celeron J1900//J4125/J6412 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory 2GB; 4GB Optional Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412) 2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~11th gen.)
Storage 8GB: 16GB/32GB/64GB Optional 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD/UHD Graphics (By CPU)
LAN 1×10/100/1000Mbps Ethernet 1× 10/100/1000Mbps Ethernet( Dual LAN optional) 1×10/100/1000Mbps Ethernet( Dual LAN optional)
OS Android 7.1/8/10/11 Linux Ubuntu(optional) Windows 7/10, Linux Windows 11(available for J4125/J6412) Windows 7/10, Linux Windows 11(available for 7th gen. or above)







GENERAL
Power Input Voltage DC 12V input
Operation/Power Saving 18~30W
Environment Considerations Operating Temperature -10~60℃ (-20~70℃ optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90%

Industrial Grade 19.5'' Integrated Buttons Panel PC with PCAP Touch RK3288 0Industrial Grade 19.5'' Integrated Buttons Panel PC with PCAP Touch RK3288 1Industrial Grade 19.5'' Integrated Buttons Panel PC with PCAP Touch RK3288 2Industrial Grade 19.5'' Integrated Buttons Panel PC with PCAP Touch RK3288 3Industrial Grade 19.5'' Integrated Buttons Panel PC with PCAP Touch RK3288 4
