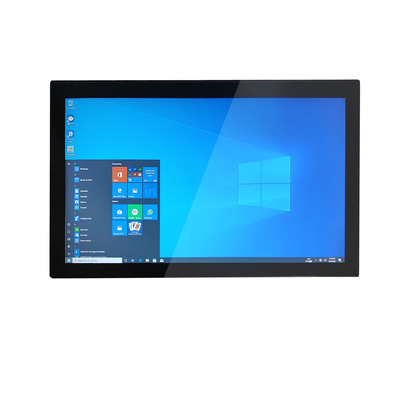

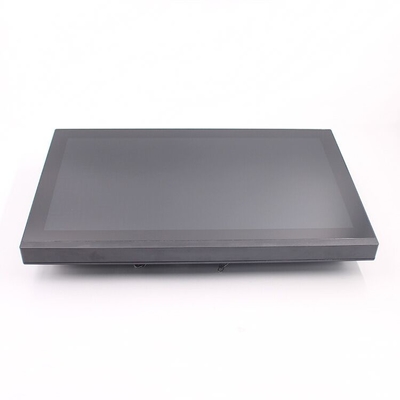

21.5'' Rugged Sunlight Readable Touch Fishing Monitor with Waterproof M12 Connector
| Place of Origin | China |
|---|---|
| Brand Name | ITD/OEM |
| Certification | CE, FCC, RoHS Compliance |
| Model Number | ITD21CMT5HBIPR1 |
| Document | 21.5inch Rugged Sunlight Re...R1.pdf |
| Minimum Order Quantity | 1PCS |
| Price | TBA |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input Port | HDMI Input (Waterproof M12 Connector) | LCD Panel | 21.5'' LCD Panel |
|---|---|---|---|
| Power Connector | DC 9~36V(Isolated DC-DC Voltage Regulator Built-in)/Waterproof M12 Connector | ||
| Highlight | Waterproof M12 Connector Fishing Monitor,Rugged Sunlight Readable Touch Monitor,21.5'' Sunlight Readable Touch Monitor |
||
Product Description
INTRODUCTION:
Designed specifically for marine environments, ITD's 21.5” rugged display offers high-resolution, sunlight-readable screen with advanced touch functionality. The fully sealed IP66/67 waterproof monitor provides crystal-clear imaging, and is readable with polarized glasses. Equipped with customizable interfaces, wide viewing angles, and anti-shock & vibration, ITD's rugged displays ensure reliability and performance even in very challenging conditions.
Feature:
•High contrast color TFT LCD display supports resolution up to 1920 x1080
•Equipped with Sunlight Readable LCD and readable with polarized sunglasses
•Rugged fan-less aluminum alloy enclosure with heatsink, flat surface with easy-to-clean
•IP66/67 fully sealed, with anti-corrosive rubber providing 360-degree protection
•10 points PCAP touch screen with anti-glare and anti-UV coating, touch on/off control
•Shock resistance up to 20G for enhanced durability and reliable performance in harsh marine environments
•CE, FCC, RoHS Compliance
OPTIONAL:
•U-shaped Mount
•Customer’s LOGO Printing
Specification
2.1 Machine paramete
| Image format | PAL/SECAM/NTSC(Option) |
| Voice System | BG /DK/I/ L |
| Decode | 3D digital Comb filter, 3D image motion noise reduction, 3D motion adaptive comb filter, etc |
| Horn specification | 10W/8 Ohms × 2 subwoofer sp |
| High-frequency | Balance, automatic volume control, surround sound, equali |
| Front Port | USB1 (PC USB), USB2 (Full Channel Shared USB), HDMI IN, TOUCH USB, TYPE-C |
| Installation method | Hanger (standard configurat |
| Power type | Three core power supply/fix |
| Embedded wall installation size | 1707.4*1013*83.2 |
| Lifetime | ≥ 50000 h |
2.2 Screen Parameters
| Screen Type | TFT |
| Size | 21.5inch (16:9) |
| Display size | 476.064(W)×267.786(H) mm |
| Resolution | 1920×1080 |
| Brightness | 1500cd/㎡ |
| Contrast Ratio | 1000:1 |
| Response time | 12/10ms |
| Number of colours | 16.7M |
| View Angle | 89/89/89/89 |
| Life Time | >50000 Hr |
| Input Signals | HDMI input (Waterproof M12 Connector) |
| Convenient Features | Menu Adjustment, Touch on/off, Volume Control |
| Power Source | DC 9~36V(Isolated DC-DC Voltage Regulator Built-in)/Waterproof M12 Connector |
| Power Consumption | Operation/Power Saving:Below 45W |
| Touch Panel | Projected Capacitive Touch Panel with 10 Multi Touch Points |
| Micro USB Port(M12 Connector) | |
| Plug and Play for Windows XP/7/8/10/11, Linux, Driver for Mac, Android | |
| Key Control | Power on/off with LED, Menu, Select, Adjustment |
| Operating Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Relative Humidity | 10%~90%(Non-Condensing) |
| Accessories | 1×6m Power Cable, 1×6m Micro USB Cable, 1×6m HDMI Cable |
